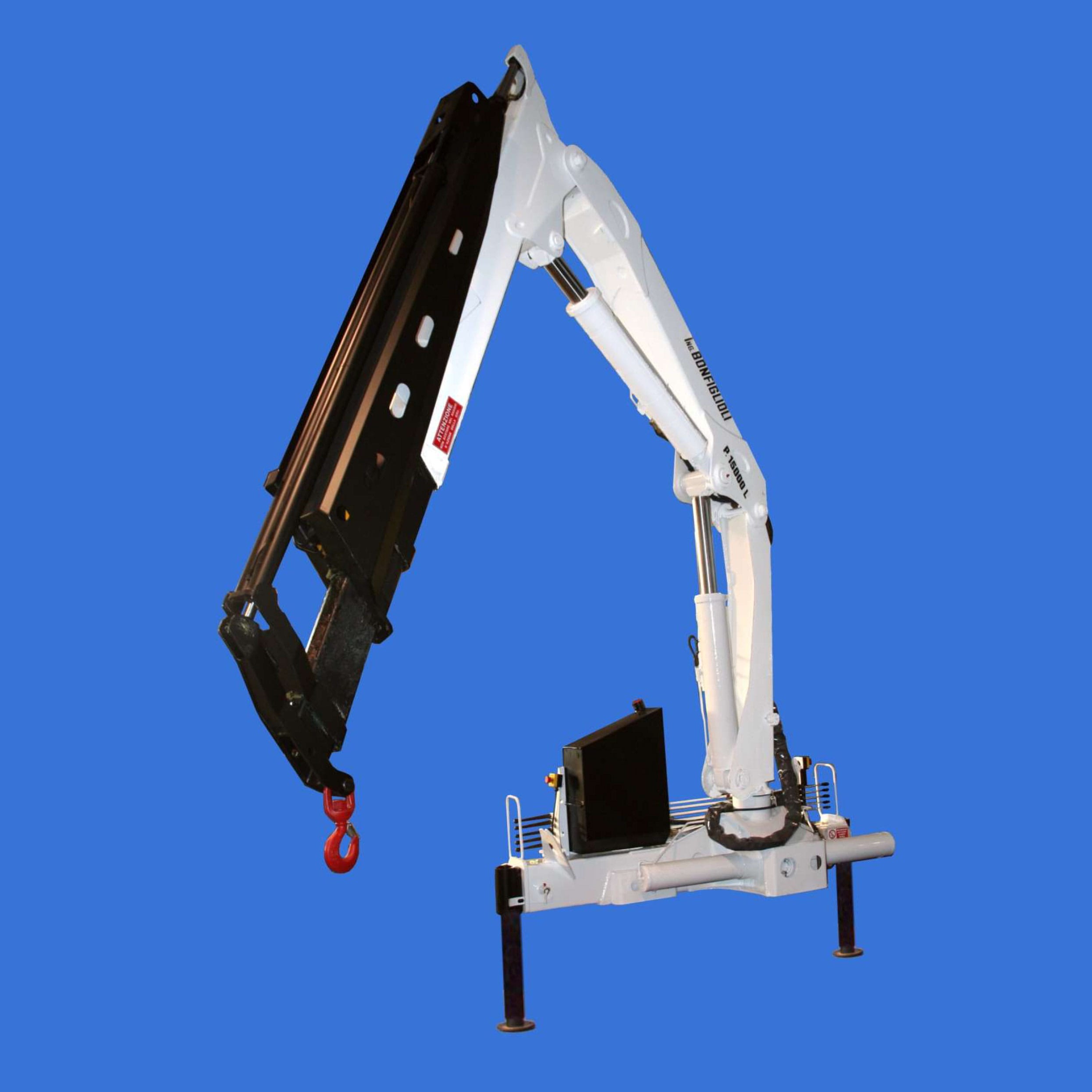

Bonfiglioli Crane Series L – P 15000 L
Bonfiglioli Crane Series L – P 15000 L - Image 2
Bonfiglioli Crane Series L – P 15000 L - Image 3
Bonfiglioli Crane Series L – P 15000 L - Image 4
Bonfiglioli Crane Series L – P 15000 L - Image 5
Bonfiglioli Crane Series L – P 15000 L - Image 6
Bonfiglioli Crane Series L – P 15000 L - Image 7
Bonfiglioli Crane Series L – P 15000 L - Image 8
Bonfiglioli Crane Series L – P 15000 L - Image 9
Bonfiglioli Crane Series L – P 15000 L - Image 10
Bonfiglioli Crane Series L – P 15000 L - Image 11

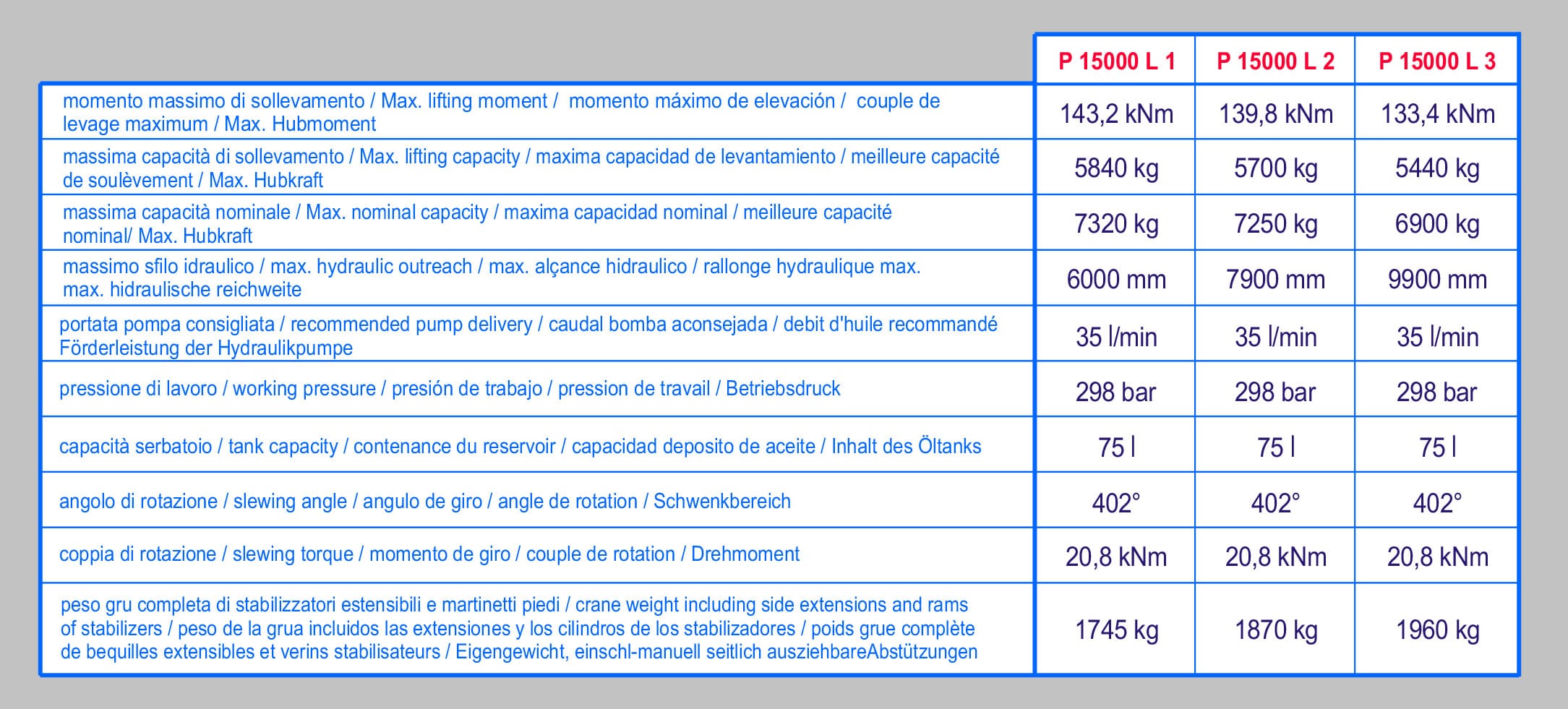

Technical Specifications

  • Max. lifting capacity 5840 kg

  • Max. nominal capacity 7320 kg

  • Max. hydraulic outreach 6000 mm

  • Recommended pump delivery 35 l/min

  • Crane weight including side extensions and rams of stabilizers 1745 kg

Download Brochure

Add To Quote
Category:

Description

Technical Specifications

  • Max. lifting capacity 5840 kg

  • Max. nominal capacity 7320 kg

  • Max. hydraulic outreach 6000 mm

  • Recommended pump delivery 35 l/min

  • Crane weight including side extensions and rams of stabilizers 1745 kg
