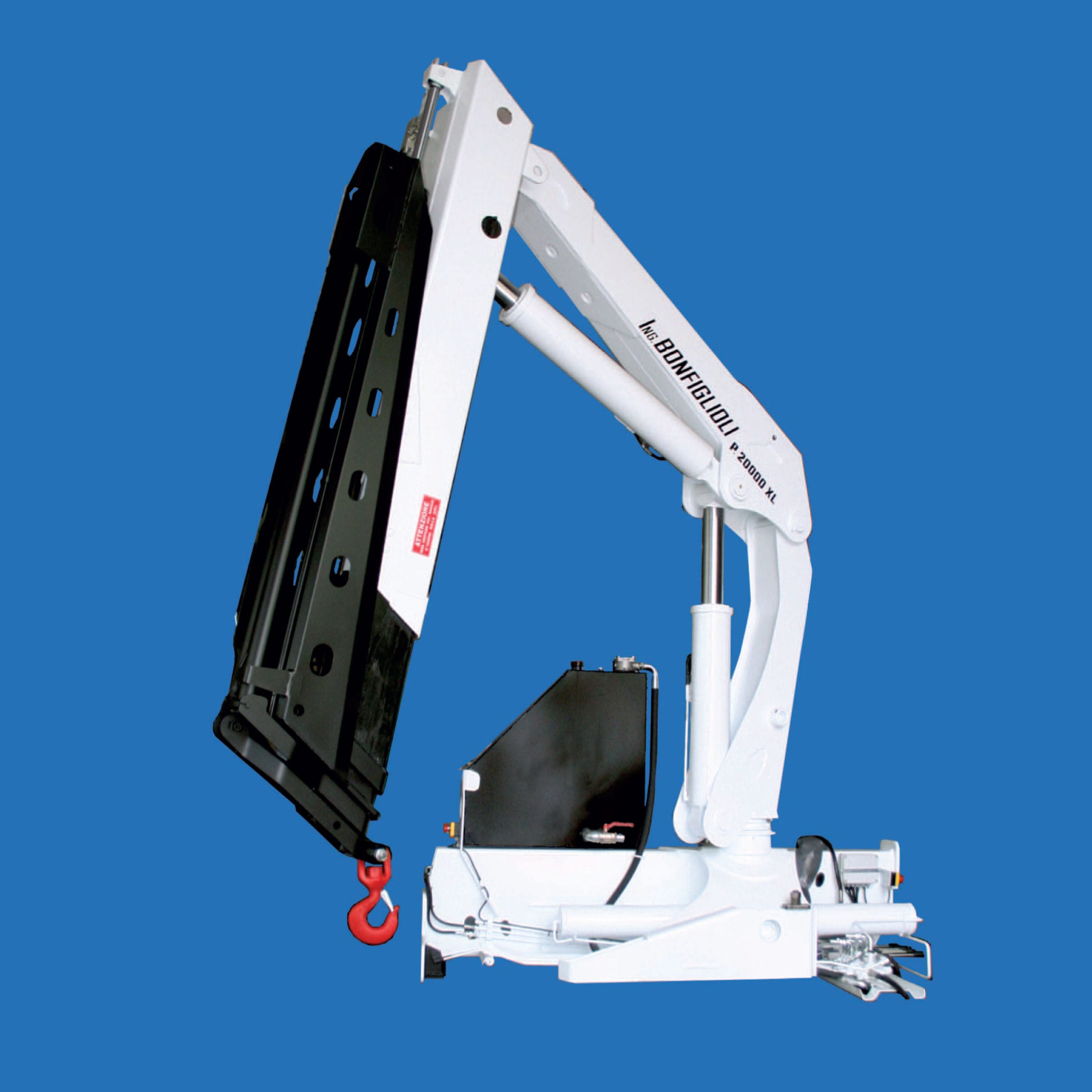

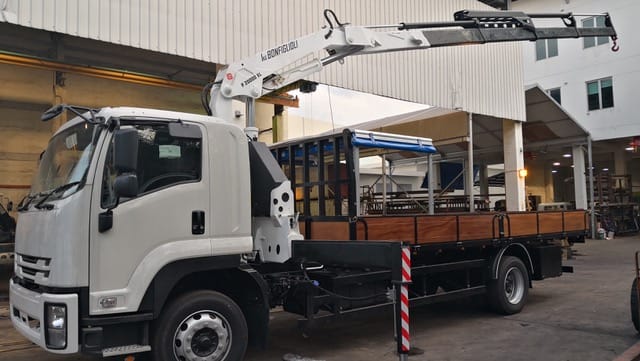

Bonfiglioli Crane Series XL – P 20000 XL
Bonfiglioli Crane Series XL – P 20000 XL - Image 2
Bonfiglioli Crane Series XL – P 20000 XL - Image 3
Bonfiglioli Crane Series XL – P 20000 XL - Image 4
Bonfiglioli Crane Series XL – P 20000 XL - Image 5
Bonfiglioli Crane Series XL – P 20000 XL - Image 6
Bonfiglioli Crane Series XL – P 20000 XL - Image 7
Bonfiglioli Crane Series XL – P 20000 XL - Image 8
Bonfiglioli Crane Series XL – P 20000 XL - Image 9
Bonfiglioli Crane Series XL – P 20000 XL - Image 10
Bonfiglioli Crane Series XL – P 20000 XL - Image 11
Bonfiglioli Crane Series XL – P 20000 XL - Image 12
Bonfiglioli Crane Series XL – P 20000 XL - Image 13
Bonfiglioli Crane Series XL – P 20000 XL - Image 14

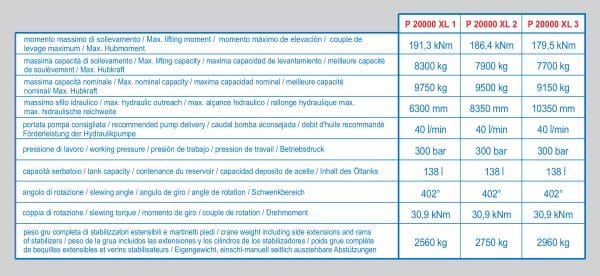

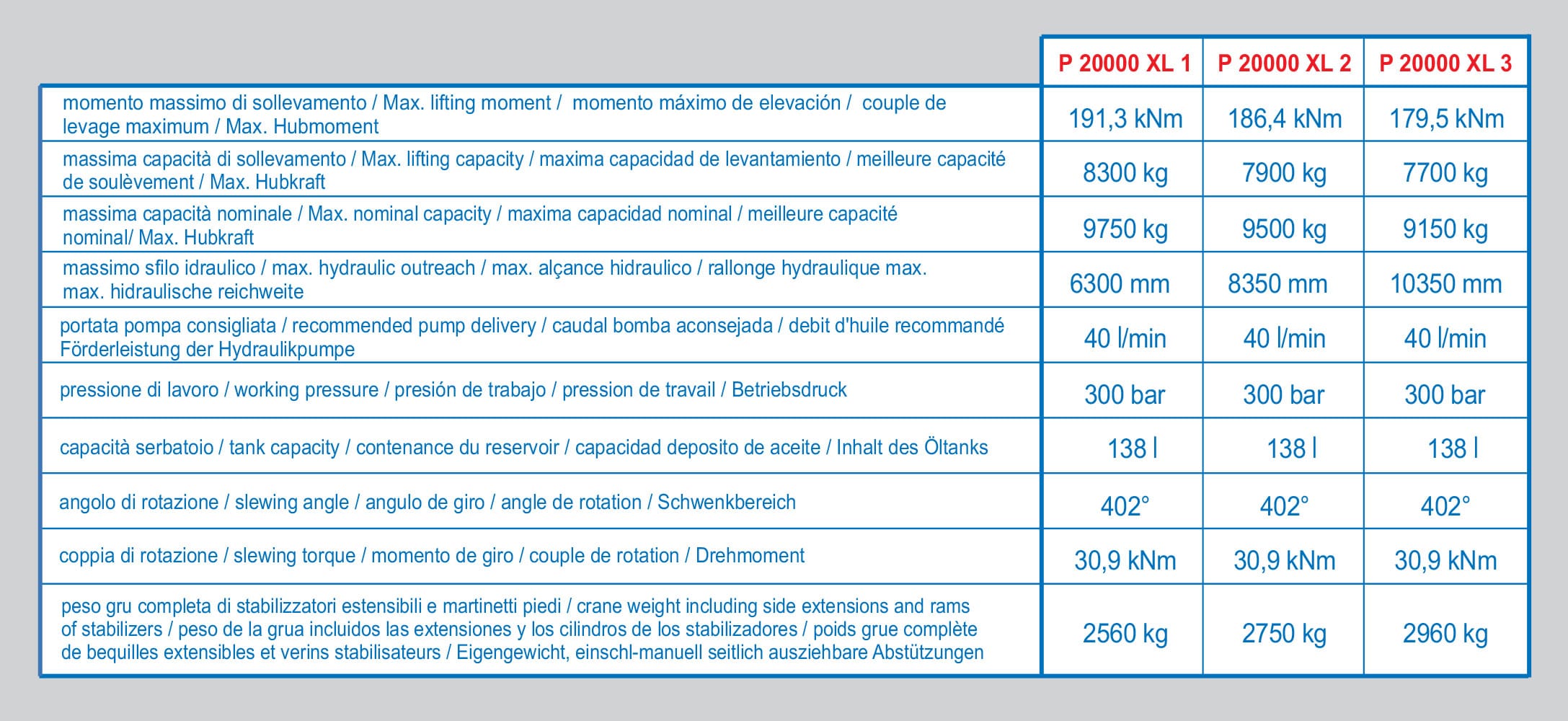

Technical Specifications

  • Max. lifting capacity 8300 kg

  • Max. nominal capacity 9750 kg

  • Max. hydraulic outreach 6300 mm

  • Recommended pump delivery 40 l/min

  • Crane weight including side extensions and rams of stabilizers 2560 kg

Download Brochure

Add To Quote
Category:

Description

Technical Specifications

  • Max. lifting capacity 8300 kg

  • Max. nominal capacity 9750 kg

  • Max. hydraulic outreach 6300 mm

  • Recommended pump delivery 40 l/min

  • Crane weight including side extensions and rams of stabilizers 2560 kg
